vGaugeG12C  Specifications

Multi-function color digital Gauge

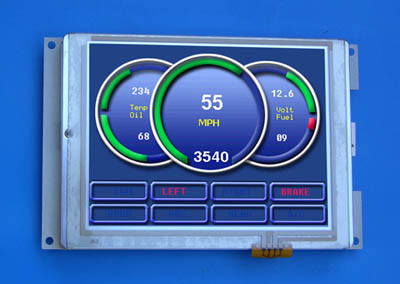

vGaugeG12C shown with dials and indicators



Remote Sensor Option
When connected to vGauge-Remote sensor unit, up to 16 digital gauge readings are possible. There is a 16' max cable length with USB and 150' max cable length with RS232 (serial) interface.
Sensor Inputs
12 analog sampled with 10-bit precision. Voltage divider and resistive inputs allow interface to most existing sensors/senders. Custom configurations are available.
Pulse Inputs
3 user programmable Pulse inputs (RPM/Speed/Fuel Flow) with pre-scale, scalar and averaged. Direct connection to inductive, spark coil, alternator, VDO signal generator (older diesel) and others. Fuel flow and totalize with compatible senders
Digital Interfaces
Available with USB 2.0 or RS232 serial connections to vGauge-Remote sensor unit or PC/Laptop.
Daylight viewable display
Easy-to-read 5.7" (diag) Color LCD display is viewable under direct sunlight. White LED backlight for low light/night operation
Display Modes
User defined gauge displays. Pick from 10 graphic options with customized labels and text sizes using vDash Virtual Instrument Design software. Load up to 8 different display pages for real-time use.
Mounting options
Flush mount in dash or console. ABS plastic case option can be mounted on pedestal bases.
Calibration Tables
12 user modifiable sensor calibration tables. 256 data lookup points per sensor input. 4 character display lookup for each of 256 data points.
Supply Voltage
Operates on 4V-14V with an optional adapter for 24 Volt systems. Operates directly from USB power (5V). Unit draws 400 mA under normal conditions
Flash Port:
Firmware upgrades can be performed in the field without sending unit to factory
Data Format
NMEA 0183 $IIXDR sentences - one for each of the 16 sensors. Continuous transmission once per second.
Alarms
Individual min and max alarms for each of 16 sensor inputs. All alarms are user programmable. Individual gauge displays will flash or change color when in alarm condition
Capture Interval
Unit continuously samples all sensor inputs and performs a multi-point average. Averaged data is formatted into a NMEA $IIXDR sentence and output once per second.
Dimensions
Rugged aluminum enclosure measures 7.5" X 6.5" X 1.75"
