vGaugeG12S  Specifications

Remote Gauge Option

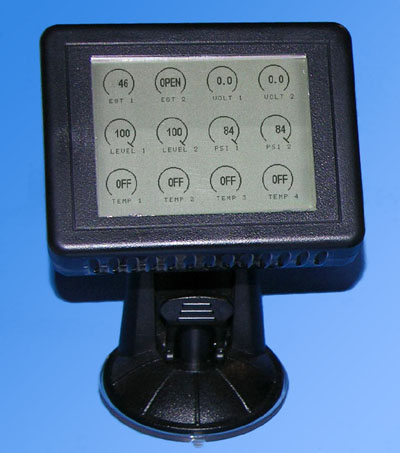

vGaugeG12S shown with optional removable dashboard pedestal mount.



Remote Sensor Option
When connected to vGauge-Remote sensor unit, up to 16 digital gauge readings are possible. There is a 16' max cable length with USB and 150' max cable length with RS232 (serial) interface.
Sensor Inputs
3 analog sampled with 10-bit precision. Voltage divider and resistive inputs allow interface to most existing sensors/senders. 3.3 Volt or 5 Volt reference voltage output available.
Pulse Inputs
User programmable Pulse inputs (RPM or SPEED) with pre-scale, scalar and average. Direct connection to inductive, spark coil, alternator, VDO signal generator (older diesel) and others.
Digital Interfaces
Available with USB 2.0 or RS232 serial connections to vGauge-Remote sensor unit or PC/Laptop.
Daylight viewable display
Easy-to-read 3.8" (diag) LCD display is viewable under direct sunlight. White LED backlight for low light/night operation
Display Modes
User defined gauge displays. Pick from 10 graphic options with customized labels and text sizes using vDash Virtual Instrument Design software. Load up to 8 different display pages for real-time use.
Mounting options
A universal T-tab bracket (ARKON #AP012) allows for a large variety of pedestals for windshield, dashboard, and console mounting options
Calibration Tables
12 user modifiable sensor calibration tables. 256 data lookup points per sensor input. 4 character display lookup for each of 256 data points.
Supply Voltage
Operates on 5V-14V with an optional adapter for 24 Volt systems. Operates directly from USB power (5V). Unit draws 200 mA under normal conditions
Flash Port:
Firmware upgrades can be performed in the field without sending unit to factory
Data Format
NMEA 0183 $IIXDR sentences - one for each of the 16 sensors. Continuous transmission once per second.
Alarms
Individual min and max alarms for each of 16 sensor inputs. All alarms are user programmable. Individual gauge displays will flash when in alarm condition
Capture Interval
Unit continuously samples all sensor inputs and performs a multi-point average. Averaged data is formatted into a NMEA $IIXDR sentence and output once per second.
Dimensions
Rugged ABS plastic enclosure measures 4.5" X 3.5" X 1.5"
