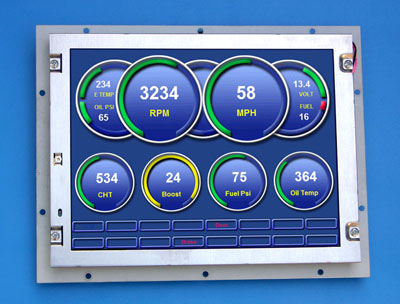

vGaugeG24C shown with dials and indictors
| Remote Sensor Option |
| When connected to vGauge-Remote sensor unit, up to 16 digital gauge readings are possible. There is a 16' max cable length with USB and 150' max cable length with RS232 (serial) interface. |
| Sensor Inputs |
| 12 analog sampled with 10-bit precision. Voltage divider and resistive inputs allow interface to most existing sensors/senders. Uses standard automotive senders. Also compatible with voltage senders such as WBO2 and HAL effect. Custom configurations are available. |
| Pulse Inputs |
| 3 user programmable Pulse inputs (RPM/Speed/Fuel Flow) with pre-scale, scalar and averaged. Direct connection to inductive, spark coil, alternator, VDO signal generator (older diesel) and others. Fuel Flow measurements and totalizer when used with appropriate flow sensors. |
| Digital Interfaces |
| Available with USB 2.0 or RS232 serial connections to vGauge-Remote sensor unit or PC/Laptop. |
| Daylight viewable display |
| Easy-to-read 8.4" (diag) Color LCD display is viewable under direct sunlight. White LED backlight for low light/night operation |
| Display Modes |
| User defined gauge displays. Pick from 10 graphic options with customized labels and text sizes using vDash Virtual Instrument Design software. Load up to 8 different display pages for real-time use. |
| Indicator Modes |
| User defined gauge displays. Pick from 10 graphic options with customized labels and text sizes using vDash Virtual Instrument Design software. Load up to 8 different display pages for real-time use. |
| Switching Modes |
| User defined gauge displays. Pick from 10 graphic options with customized labels and text sizes using vDash Virtual Instrument Design software. Load up to 8 different display pages for real-time use. |
| Mounting options |
| Custom mount in dash or console. Rugged aluminum case option can be flush mounted |
| Calibration Tables |
| 12 user modifiable sensor calibration tables. 256 data lookup points per sensor input. 4 character display lookup for each of 256 data points. |
| Supply Voltage |
| Operates on 4V-14V with an optional adapter for 24 Volt systems. Operates directly from USB power (5V). Unit draws 800 mA under normal conditions |
| Flash Port: |
| Firmware upgrades can be performed in the field without sending unit to factory via Compact Flash Memory card |
| Data Format |
| NMEA 0183 $IIXDR sentences - one for each of the 16 sensors. Continuous transmission once per second. |
| Alarms |
| Individual min and max alarms for each of 16 sensor inputs. All alarms are user programmable. Individual gauge displays will flash or change color when in alarm condition |
| Capture Interval |
| Unit continuously samples all sensor inputs and performs a multi-point average. Averaged data is formatted into a NMEA $IIXDR sentence and output once per second. Pulse inputs can be updated at 4 times per second. Data can be logged to PC/Laptop or optional USB Memory stick. |
| Dimensions |
| Module outside dimension measures 7.5" X 6.5" X 1.75". Display cutout measures 7" X 7" |
