Digital Dial 3

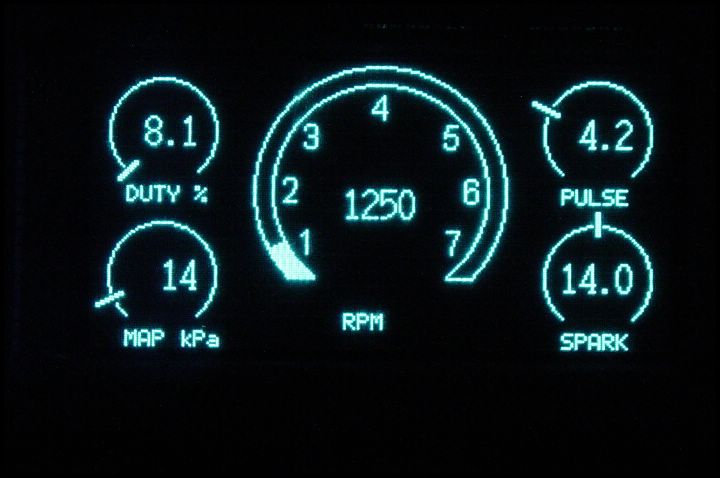

This screen shows 5 gauges in graphic dial format, Each gauge has a pointer that rotates clockwise as values increase. Large RPM dial fills clockwise as value increases. Injector pulse width, Pulse width duty cycle, Manifold Pressure, Spark advance and RPM all come from C950 via serial port. Dial positions and labels are user configurable.
