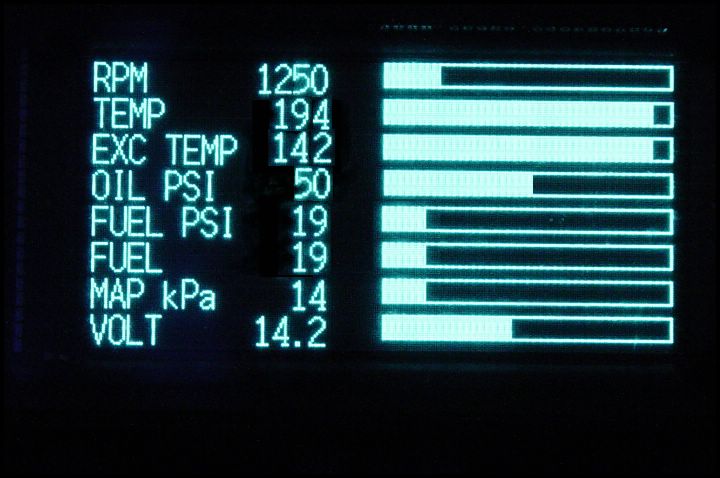

BAR GRAPH Screen 2

This screen shows 8 user defined BAR GRAPHS, Each graph fills from left to right as values increase. Bar Graph updates are in real-time. In this screen, 4 values come from C950 via serial port (RPM, TEMP, MAP, and VOLT) while the remaining 4 (OIL, FUEL PSI, FUEL LEVEL, and Heat Exchanger Temp) come from analog inputs. Graph positions and labels are user configurable.
