vGauge-G12C  Specifications

Color LCD Digital Gauge




16 function color digital gauge for car/RV/boat

Tach, Temp, Volt, Fuel, Oil, RPM, MPH, Amps, and more

  • User configurable instrument labels

  • Huge 5.7" COLOR GRAPHIC LCD display

  • Compact 7.5 X 6.5 X 1.75 sealed aluminum enclosure

  • Works with existing senders

  • Min/Max alarms for all inputs

  • Cascade units for up to 16 functions

  • Remote Control and display on PC/PDA included

  • PC/PDA data logging included

  • Field upgradeable

  • Only 1.75" thick - easily fits into dash

Shows up to 12 digital gauge readings on one display. Text labels and positions are configurable using on screen menus. Show from 1 to 12 readings at a glance. Multiple display formats are available. Up to 8 analog inputs and up to 16 NMEA 0183 or HOLLEY COMMANDER 950 inputs via serial port. Other options are available for ODBII interfaces to display real-time ECM data in gauge formats. Click on images for more details

Units are capable of displaying multiple functions including digital tachometer, RPM, MPH, engine temperature, manifold temperature, exhaust temperature, oil pressure, water pressure, volts, amps, O2, MAP, fuel level, battery charge, and more  - all in a single multi-function gauge cluster.

Ideal as gauge replacements or upgrades. They can also be used in boat, automotive and RV applications as additional instrument clusters.

Compact solid aluminum case is easy to mount in any location. Anti-glare faceplate provides viewing in sunlight and has a protective finish to resist scratches. Cases are CNC machined out of billet aluminum stock and painted  metallic black with a hardened clear coat finish to prevent corrosion. Sealed silicone buttons provide durable operation in the harshest of climates.

All sender/sensor inputs are programmable to match existing equipment. No need to replace senders. High/Low alarms are programmable for each sensor. Pick and choose your own sender combinations. Unique customizable calibration tables are available for all types of senders and can be downloaded to unit using serial or wireless interface. Simply modify a text file to suit you sensor application. Units can be configured for most standard automotive and marine senders.

Both a RS232 and Bluetooth wireless interface are available to attach to PC/Laptop/PDA for real-time viewing and data logging of gauge reading. View and log sensor inputs from outside your car/boat in real-time.

Up to 16 inputs when used with vGauge-Remote sensor unit. Six function stand-alone gauge option also available.

Units have 10 different graphic display modes -

         Data Display - Values are displayed with Text labels and digital readouts. Up to 12 can be chosen for each of 8 possible display groups.

         Histogram Display - Sensor value is displayed with Text Label and digital readout along with a 64-bar Histogram that tracks values over user configured time interval from 15 seconds to several hours. Great for showing trends.

         Bar Graph Display - Sensor labels and values are displayed with a 24 segment Bar Graph from Min to Max. Up to 6 can be chosen for each of 8 possible groups. Great for comparing different sensors side-by-side.

         Digital Gauge  Display - Sensor labels and values are displayed with a dial gauge with 8 segments from Min to Max. Up to 12 can be chosen for each of 8 possible display groups. Great for comparing different sensors side-by-side.

         Large Dial Display Ideal for RPM and MPH display. Include digital readout and graphic fill around perimeter. Up to 6 can chosen per display page.

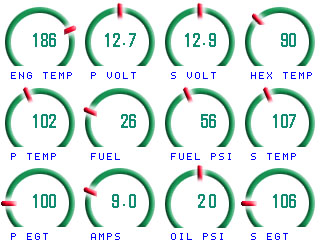

Digital Dial Mode

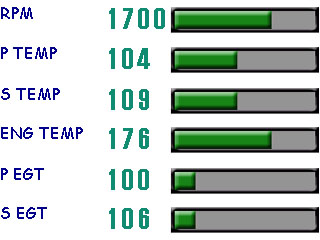

Bar Graph Mode

Histogram Mode

Digital Data Mode

Specifications

FEATURE

vGAUGE-G12C

vGAUGE-G12N

vGAUGE-G12CP

vGAUGE-G12CS

Display type

5.7" Color LCD

4" Color LCD

5.7" Color LCD

4.3" Color LCD

Display resolution

320X240

320X240

320X240

480X272

Display lines

(6 or 12) by 40

(6 or 12) by 40

(6 or 12) by 40

(6 or 12) by 60











Gauge Pages

8

8

8

8

MAX Gauges per Page

16

16

16

16

Gauge Modes

6

6

6

6



Text, Small text,  Dial, Large Dial, Bar graph, Histogram,

Text, Small text,  Dial, Large Dial, Bar graph, Histogram,

Text, Small text,  Dial, Large Dial, Bar graph, Histogram,

Text, Small text,  Dial, Large Dial, Bar graph, Histogram,

Bar Graph resolution

24

24

24

24

Histogram resolution

256X128

40X64

40X64

40X64











Display update rate

2 per sec

2 per sec

2 per sec

2 per sec

NMEA update rate

16 per sec

16 per sec

16 per sec

16 per sec











Analog Inputs1

16/32

16

16

16

Pulse Inputs1

3/6

3

3

3

NMEA Inputs

16

16

16

16

NMEA Outputs

16

16

16

16

Ports

1Serial / 1 USB

1Serial / 1 USB

1Serial / 1 USB

1Serial / 1 USB











Input types1

Temp 0-400F, Temp 80-2500F, PS I 0-150, Volt 0-30, Amp +/-100, Fuel Level 10-230 OHM, Pulse 0-12V

Temp 0-400F, Temp 80-2500F, PS I 0-150, Volt 0-30, Amp +/-100, Fuel Level 10-230 OHM, Pulse 0-12V

Temp 0-400F, Temp 80-2500F, PS I 0-150, Volt 0-30, Amp +/-100, Fuel Level 10-230 OHM, Pulse 0-12V

Temp 0-400F, Temp 80-2500F, PS I 0-150, Volt 0-30, Amp +/-100, Fuel Level 10-230 OHM, Pulse 0-12V











Alarms High/Low

16

16

16

16

Calibration Tables

16

16

16

16

Calibration resolution

256 X 6 character

256 X 6 character

256 X 6 character

256 X 6 character

Display Labels

16 X 8 character

16 X 8 character

16 X 8 character

16 X 8 character





















Power

850 mA at 9V

650 mA at 9V

850 mA at 9V

450 mA at 5V











Case Dimension

7.5 X 6.5 X 2.5

5.5 X 4.5 X 1.5

7.5 X 6.5 X 2.5

4.5 X 3.6 X 1.3











Case Type

Painted CNC Aluminum

NMEA 4 Flush Mount

ABS Plastic

ABS Plastic

 1) When used with vGauge-Remote sensor unit

* Prices effective 05/2008. Prices and specifications subject to change

* Copyright 2008 Chetco Digital Instruments, Inc. All rights reserved.
